Packaging Machines - Elevator / Tilter

CB Equipements offers a full range of Elevator & Tilter

Features & benefits

Photo Elévateur

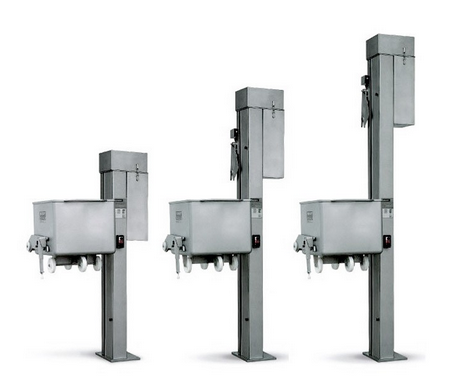

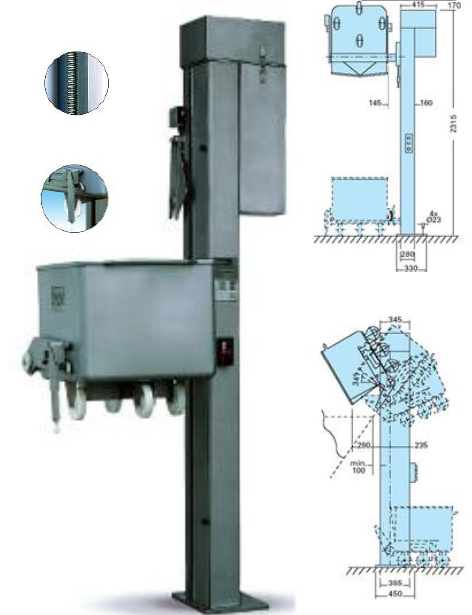

Column Dumpers for 200 to 300 litres Bin Hoist

Designed to handle either standards bins of 200 or 300 litres.
Lifting speed : 5 m/min
Power : 2 HP (1,5 kW).
Materials : stainless steel AISI 304
Designed to be bolted to the floor or to a mobile base.
Motor well protected into a stainless box (level of protection : IP65).
Bin hoist are screw driven for a better safety.

Left or right position

Maximum charge : 350 Kg

Weight : 297 kg.
Tilting height :
    950-1450
  1450-1950
  1950-2450

Base mobile site CBE

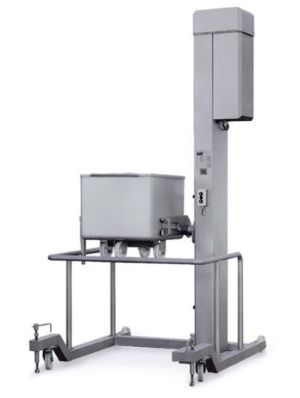

Mobile  Carriage

This mobile carriage are the safest on the marquet. It avoids people access into dangerous lifting area.
Materials : stainless steel AISI 304
Left or right position
Special handrail, makes carriage easy to transport
Weight : 56 Kg


lévateur basculeur site cbe

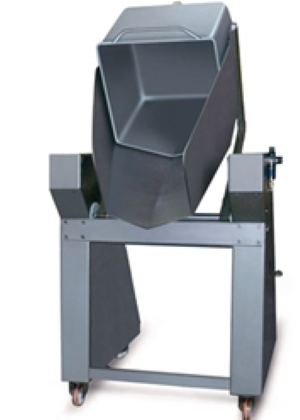

Tipping Dumper

Mobile Tipping Device/Dumper for 200L and 300L Bins (Buggies).

Pneumatic
Tipping Height : 1000 mm
Maximum load : 350 Kg
Working pressure : 6.3 bar (7Kg/cm2)
Materials : stainless steel AISI 304
On wheels
Side gard
